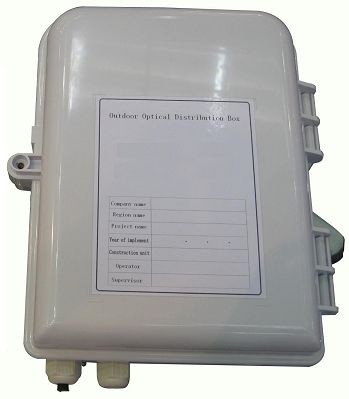

MDU 216A Splitter Fiber Optic Termination Box 16 Fibers Max Capacity

Model Number : MDU 216A

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

Packaging Details : 10 pcs/ctn, 550*355*620cm, 16.10 kgs

PLC Splitter : 1x4, 2x4, 1x8, 2x8 or 2x16

Max. No. of Adapter : 16 pcs of SC simplex or LC duplex

Dimension(mm) : 320x260x90

Max Capacity : 16 fibers

No. of Ports : 2 input ports and 16 output ports

Contact Now

Fiber Optic Terminal Box, Splitter Terminal, Outdoor Fiber Termination Box, Optical Multi-dwelling Unit (16 fibers)

Outdoor MDU 216A Splitter Terminal

Description
The MDU 216A Splitter Terminal from Optic Network Technology Co.Ltd. is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.
The design of MDU 216A splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.
Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.

MDU 216A Splitter Fiber Optic Termination Box 16 Fibers Max Capacity

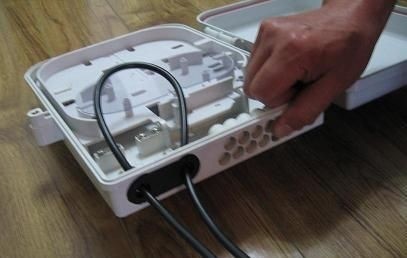

MDU 216A I normal type

Features

Indoor or outdoor rated
Available 1x4, 1x8, 1x16 splitter as well as 2x4, 2x8, 2x16 splitter
Max. up 16 pcs of FTTH drop cable or pigtails
Suitable for wall-mounting or pole mounting application
2 pcs of inlet ports and 16 pcs of outlet ports

Application

FTTH, FTTB, FTTC
Telecommunication Network
CATV
Local Area Network

MDU 216A Splitter Fiber Optic Termination Box 16 Fibers Max Capacity

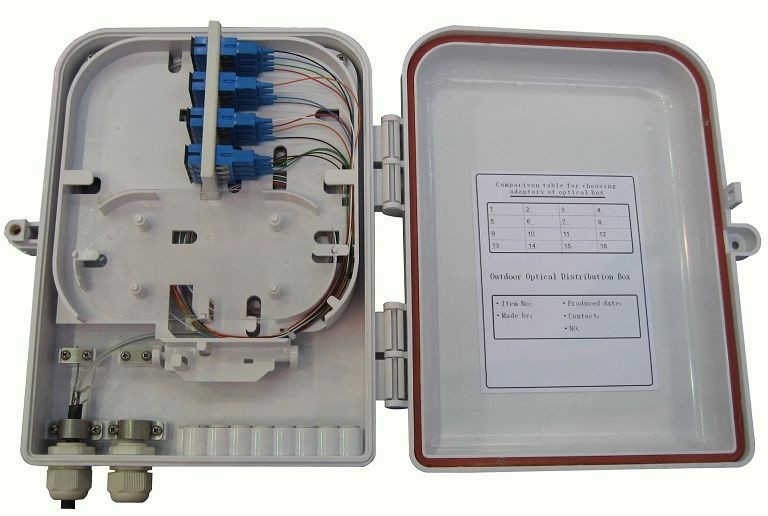

MDU216A II with oval port

Dimensions

Model

Max. Capacity

Max. No. of Adapter

PLC Splitter

Dimension(mm)

(WxLxD)

No. of Ports

MDU 216A

16 fibers

16 pcs of SC simplex

or LC duplex

1x4, 2x4, 1x8,

2x8 or 2x16

320x260x90

2 input ports

and16 output ports

MDU216A I (normal type) , MDU216A II (for uncut cable)

Packing information

Model

N.W

(kg/pcs)

Dimension of Carton

(mm)

G.W of Carton

(kg/carton)

Quantity / per Carton

(pcs/carton)

MDU216A

1.40

550*355*620

16.10
