Stable Fiber Optic Cable Termination Boxes For Telecommunication Network

Model Number : MDU 216B

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

Packaging Details : 10 pcs/ctn, 550*355*620cm, 16.10 kgs

PLC Splitter : 1x4, 2x4, 1x8, 2x8 or 2x16

Max. No. of Adapter : 16 pcs of SC simplex or LC duplex

Dimension(mm) : 320x260x90

Max Capacity : 16 fibers

No. of Ports : 2 input ports and 16 output ports

Contact Now

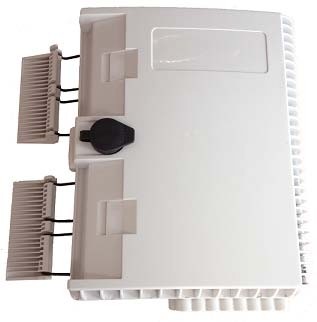

Outdoor MDU 216B Splitter Terminal

Description
The MDU 216B Splitter Terminal from Optic Network Technology Co.Ltd. is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.
The design of MDU 216B splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.

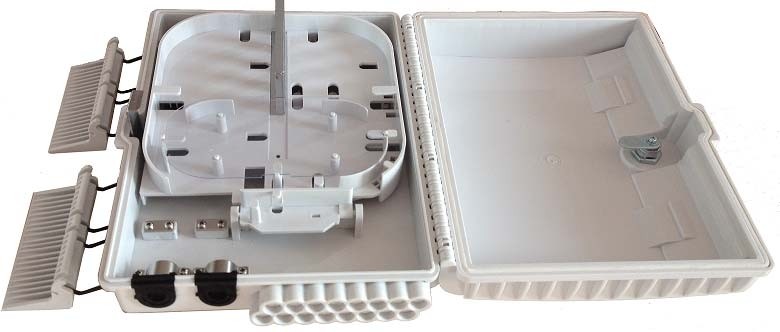

Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up. It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.

Stable Fiber Optic Cable Termination Boxes For Telecommunication Network

Stable Fiber Optic Cable Termination Boxes For Telecommunication Network

Features

Indoor or outdoor rated
Available 1x4, 1x8, 1x16 splitter as well as 2x4, 2x8, 2x16 splitter
Max. up 16 pcs of FTTH drop cable or pigtails
Suitable for wall-mounting or pole mounting application
2 pcs of inlet ports and 16 pcs of outlet ports
With door lock

Application

FTTH, FTTB, FTTC
Telecommunication Network
CATV
Local Area Network

Dimensions

Model

Max. Capacity

Max. No. of Adapter

PLC Splitter

Dimension(mm)

(WxLxD)

No. of Ports

MDU 216B

16 fibers

16 pcs of SC simplex

or LC duplex

1x4, 2x4, 1x8,

2x8 or 2x16

320x260x90

2 input ports

and16 output ports

Packing information

Model

N.W

(kg/pcs)

Dimension of Carton

(mm)

G.W of Carton

(kg/carton)

Quantity / per Carton

(pcs/carton)

MDU216B

1.40

550*355*620

16.10
