Pole Mounting Wall Mount Fiber Termination Box MDU Splitter Terminal

Model Number : MDU 208B

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

PLC Splitter : 1x4, 2x4, 1x8

Max Capacity : 8 fibers

Max. No. of Adapter : 8 pcs of SC simplex or LC duplex

Dimension(mm) : 200x215x54

Contact Now

Fiber Optic Terminal Box, Wall Mount Fiber Termination Box, Pole Mounting, MDU Splitter Terminal

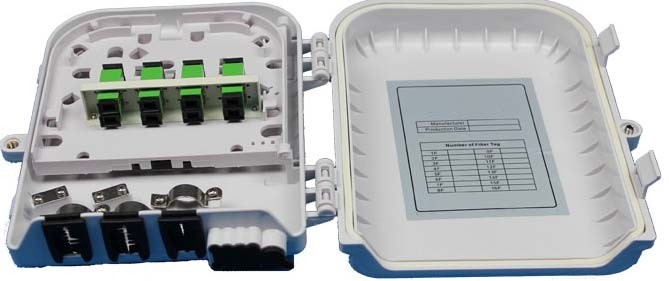

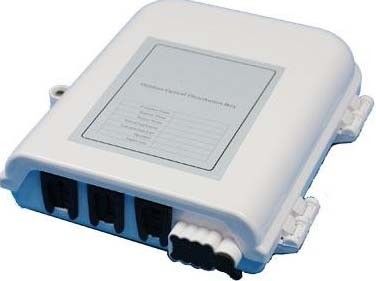

Outdoor MDU 208B Splitter Terminal

Description

The MDU 208B Splitter Terminal from Optic Network Technology is rugged, low cost, low profile interconnection between central office and multi-dwelling units of FTTx application.

The design of MDU 208B splitter terminal combines the functionality of a local convergence cabinet with MDU terminal.Its multi-layer design allows installers to access only the components necessary for initial installation or subscriber turn-up.

It can house the splitter and allows for pigtail splicing of distribution/drop cables as needed.

Pole Mounting Wall Mount Fiber Termination Box MDU Splitter Terminal

Features

Indoor or outdoor rated
Available 1x4, 2X4,1x8 splitter as well as splitter
Max. up 8 pcs of FTTH drop cable or pigtails
Suitable for wall-mounting or pole mounting application
2 pcs of inlet ports and 8 pcs of outlet ports
IP Grade: IP54

Application

FTTH, FTTB, FTTC
Telecommunication Network
CATV
Local Area Network

Ordering Guidance

Model

PLC Splitter

Max Capacity

Max. No. of Adapter

Dimension(mm)

(WxLxD)

No. of Ports

MDU 208B

1x4, 2x4,

1x8

8 fibers

8 pcs of SC simplex

or LC duplex

200x215x54

2 input ports and

8 output ports for drop cable
