12 / 24 Splitter Fiber Optic Termination Box Desk Or Wall Mounting Type

Model Number : GP-ZD

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

No of Entry / Exit Ports : 2

Max. No of Splice Tray : 4/2

Max Fiber Counter : 24/12

Max. No of Pigtail : 24

Max No. of Adapter : 8

Dimension : 264x154x56 mm

Contact Now

12/24 fiber Splitter Terminal, FTTx Communication Network, Fiber Optic Cable Box Desk or Wall Mounting Type

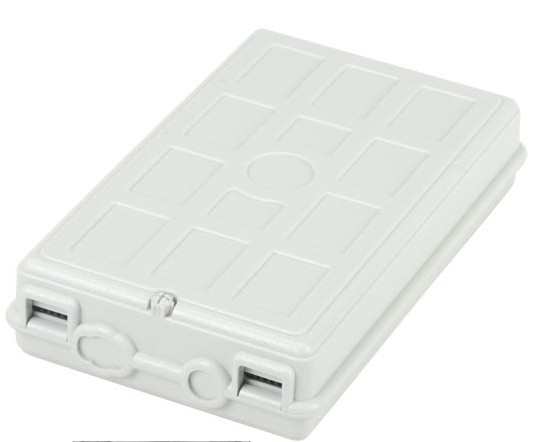

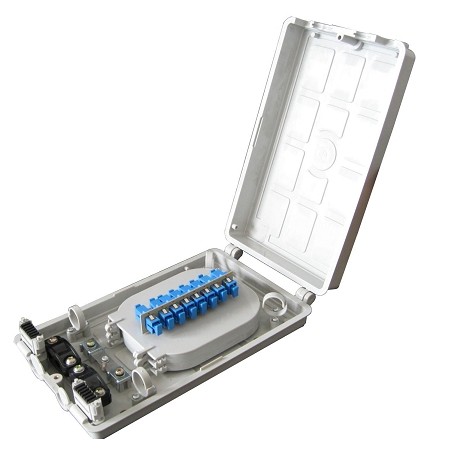

GP-ZD Fiber Optic Termination Box

Description

Termination box is suitable for jointing fiber cable and pigtail ,and it protects fiber optic splices and help to distribute .The termination box is either a wall-mounting type or a desktop type ,which is mainly used in telecommunication equipment room and network equipment room.

12 / 24 Splitter Fiber Optic Termination Box Desk Or Wall Mounting Type

GP-ZD I GP-ZD

Features

Light weight , small size ,easy installation
Provide splice protection of fiber cable and pigtail
Made of engineering plastic material , which has mechanical strength ,therefore it is reliable and long lasting .
Slide-in-lock fiber optic splice tray with its opening angle above 90℃. Therefore it is easy for installation and maintenance

12 / 24 Splitter Fiber Optic Termination Box Desk Or Wall Mounting Type

GP-ZD II

Ordering Guidance

Model No.

No of Entry

/Exit Ports

Max. No of

Splice Tray

Max Fiber Counter

Max. No

of Pigtail

Max No.

of Adapter

Dimension

(Lx W x H) mm

GP-ZDⅠ

264x154x56

GP-ZD II

Accessories

Accessories provided with termination box: insulation tape .nylon tie .numbering paper. fixer .

Accessories to be ordered in addition : adapter, pigtail , patch cord.
