Splitter Terminal Fiber Optic Termination Box Plastic Material White Color

Product Categories

Optic Network Technology Co., Ltd.

Contact Now

Model Number : GP-02H

Place of Origin : Zhejiang,China

MOQ : 10 pcs

Payment Terms : T/T

Delivery Time : in one week

Material : Plastic

Color : White

Storage of fibers : G.657

Splice Capacity : 2 fibers

Splice Method : Fusion Splice

Adapter type and count : 2 SC

Input Cable : 3mm or figure 8 (2*3mm)

Outside Dimension (mm) : 80*100*25

Contact Now

Splitter Terminal, FTTx Communication Network, FTTH Termination Box, Desk or Wall Mount, 2 fibers

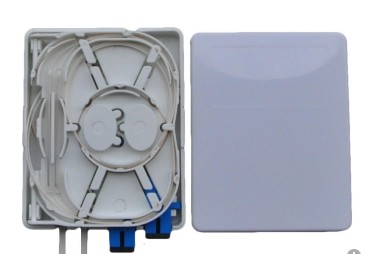

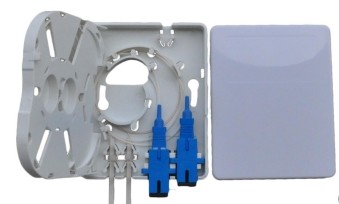

GP-02H FTTH Termination Box

Application :

The GP-02H is a desk mounted or wall mounted termination box for end user, indoor use, capable to handle fiber fusion, fiber cables and pigtails.

Splitter Terminal Fiber Optic Termination Box Plastic Material White Color

Features & Benefits

Support termination, splicing and storage for fiber optic cable systems
Suitable for two adapters SC configuration
Compatible with G.657A1 and G.657B3
Compact structure and perfect fiber management
Engineered fiber routing protect bend radius through the unit to ensure signal integrity

Specifications

Accessories

No.	Name	Qty.
1	Fiber splice protection sleeve	2pcs
2	Screw kits	2 set

Splitter Terminal Fiber Optic Termination Box Plastic Material White Color
